"Armored" Derby the FlashCut method

With access to the College for Creative Studies FAD Flashcut 222 I decided to go back to a style that I love but that is very difficult to click by hand.



For several reasons I am really enamored with the Flashcut; for intricate work such as this type of precision. Two things come together to enhance the outcome beyond the traditional methods.
  1. Creating the patterns in CAD
  2. Cutting and marking the patterns with the Flash
This system in no way eliminates or simplifies the pattern Master Forme'; you still have to create a Master in which ever way you are most experienced with. I use the "tape and drape" to Master method.


The interesting thing is that as soon as I have a Master I can stop the pattern drafting by hand and go directly to CAD.

  1. Scan your Master to jpeg
  2. Open your scan in Photoshop or any program that will tell you the EXACT length and width of the scan image to the 0.001", record these dimensions (example 10.867" x 16.698")
  3. Use these dimensions to check that your jpeg imports exactly to size into your CAD or CAR program. (so far we are using only Illustrator and Rhino)

The methods for creating the various parts in CAD are the same as by hand, and take about as long.

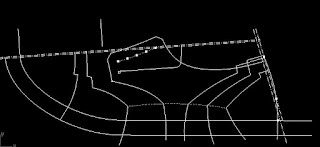

I keep the Design lines and the primary construction lines (fold lines etc.) in one layer and create each part in a separate layer.


It is only when you compare the CAD lines and curves to your drafting versions that the real beauty of cad comes to light.
  1. The creation of Parallel Offsets is something that the computer does with ease and by hand can be clumsy.
  2. Changes are new lines and the old lines can be saved
  3. Seeing "thru" the parts and turning layers on and off is a great way to weed thru the various parts.

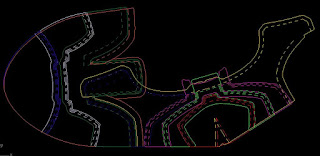

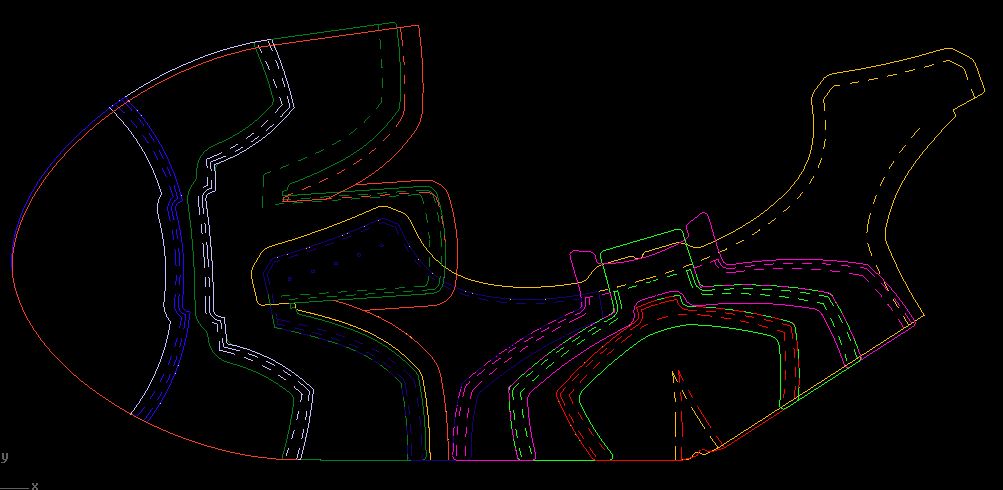

This is Rhino 4 layers list; for this multi piece project there are 10 separate parts, for ease and efficiency in Flashcut I make separate files for left and right parts.
I have since separated the side facing into two parts
I am on V3c as far as versions go.
The only full scale pattern I needed was for the dart at the heel because you can't cut on one side and print on the other.


Front half and rear half complete
Closed upper
Top-line tape and eyelet reinforcements
I use a piece of tube to tape down the tongue, I make the lining 1/16 shorter per side.

Creating in CAD and marking all of the stitch lines with the Flashcut is a confidence booster and allows for creativity that I would usually avoid like tapered stitch lines.

Obviously the precision of clicking improves the assembly and reduces accumulated errors.

One of my latest tools is a 3/4" plank shaped like a heel for the purpose of taping down the quarters.
I make the lining 1/8" snaller per side and this system work fine.

I'm experimenting with Wonderflex for both Toe and heel counters, works nice.

Always a pain to hold while applying the paste glue so I made this hanging board.

I used a blunted chisel on the Cordovan; it is a peculiar experience; it does not act like regular leather.



For my American Welt? I use my old 77 and chain stitch around the perimeter and around the shank too.

11.20.18
Pressing the sole

Made a steel template to outline the 5" radius for the heel breast
Stitched with the CCS Landis
Next version with subtle changes (work shoe)
The hardest job of ALL; finishing the heel breast
